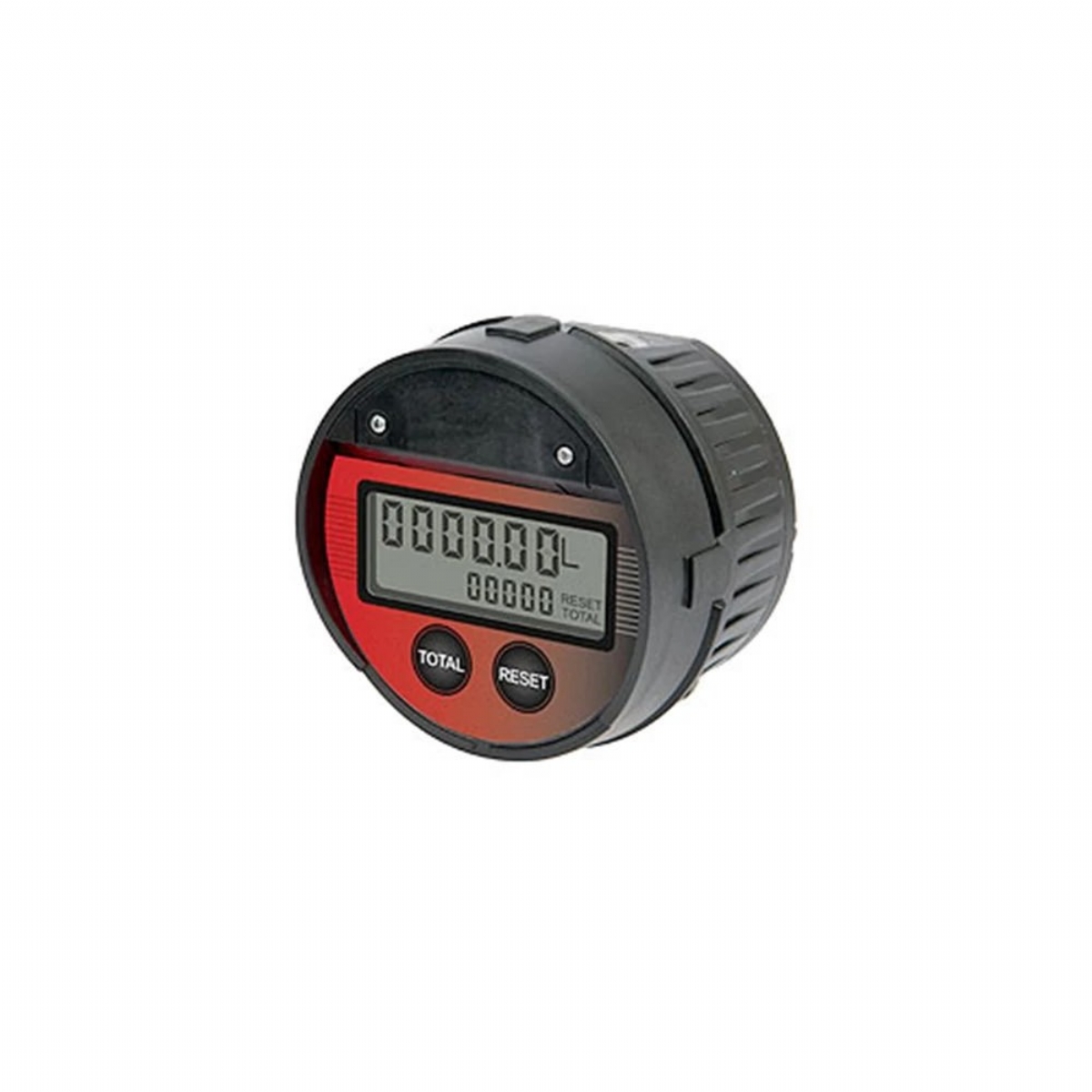

Badger Digital Meter and Hose
Badger Digital Meter and Hose
Item No: BADGER LMOG
Connection: G 1/2” female
Nominal width: DN 12
Metering principle: Oval gears
Typical media: Engine oils SAE 5 – 50, gear oils SAE 80 – 240
Flow capacityw (l/min): 0 – 30
Viscosity (mPa s): 8 – 5000
Nominal pressure (bar): 70
Operating pressure (bar): min. 0,30
Temperature range (°C): -10 / +50
Measuring tolerance (%): ± 0,5%
Repetition tolerance (%): ± 0,3
Solution (l): 0,002
Pulses (pulses/l): 216
Design: Not calibratable
Material of casing: Aluminium die casting
Display: digital, three digits and two decimal digits
Height of the digits (mm): 8
Battery type: LR1 1,5 V
