Cable Reel 220 V 3x2.5 15 mt

Cable Reel 220 V  3x2.5 15 mt
NEW

Cable Reel 220 V 3x2.5 15 mt

Item No: 4325 -15

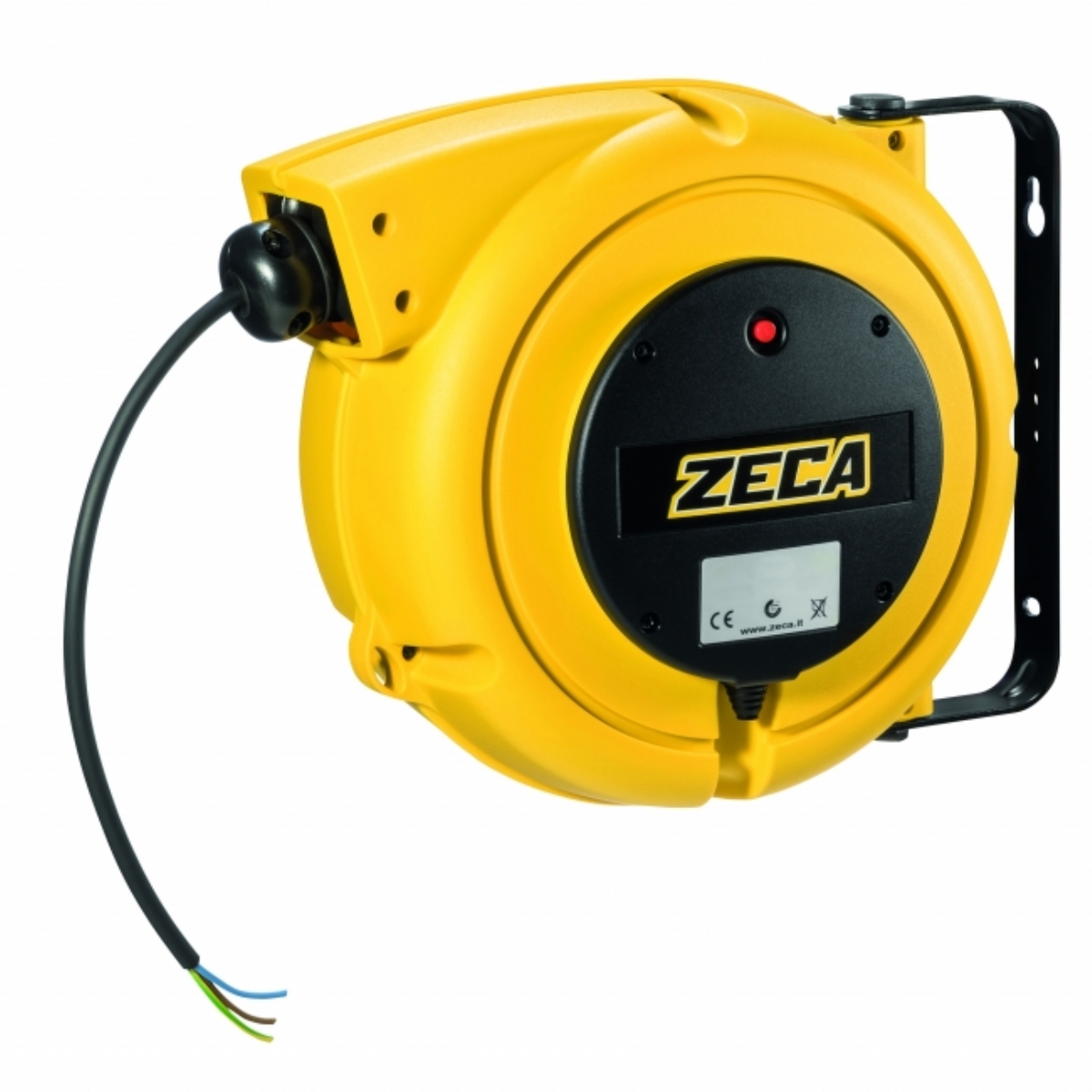

INDUSTRIAL CABLE REELS ZECA 4000



SERIES 4000 , ART. 4325

Length (m) 15

Number of conductors 3 G

Cross-section (mm2) 2.5

Wound cable capacity (@20°C)  1,9 KW @ 220V



Structural elements of the winder in impact-resistant plastic.

• Roller cable guide mouth.

• Cable stop device with rack that can be inserted every 50cm. All cable reels are supplied with the cable stop device

disconnected. Easily insertable.

• Double ground contact.

• Collector insulation voltage 2.5 KV.

• Sliding contacts with collector ring and brushes.

• Degree of protection IP42.

• Ambient operating temperature -5 ° C / + 50 ° C.

• Supplied without piece on the power supply side.

• Models with both PVC and rubber cables are available
