FMT Electrical Diesel Transfer Pump 230 V 100 Lt/min
Item No: 23433
FMT Brand 230 Volt AC Diesel Transfer Pumps 100 lt/ min
Technical data
Connecting cable, length (m): 2
Connection suction side: G 1'' female
Connection discharge side: G 1'' female
Hydraulic data
Pump design: vane pump, selfpriming
Delivery rate under free discharge (l/min): 100
Discharge pressure up to (bar): 2,2
Suction height (m): 5
Pumping media: fuel oil and diesel
Motor data
Insulation class: F
Highest permissible limit temperature (°C): 155
Voltage (V): 230
Frequency (Hz): 50
Power consumption (A): 5,7
Power (kW): 1,2
Thermal protection: self resetting
Duty cycle (min): Continuous operation – a real endurance runner
Torque (Nm): 4,1
Rotation speed (rpm): 1400
Type of construction: IMB 3
Safety class: IP54
Materials of parts in contact with liquid
Seals: FKM (Viton®)/NBR
Pump housing: AlSi 12 (sea water resistant)
Rotor: GG 25
Vane: POM

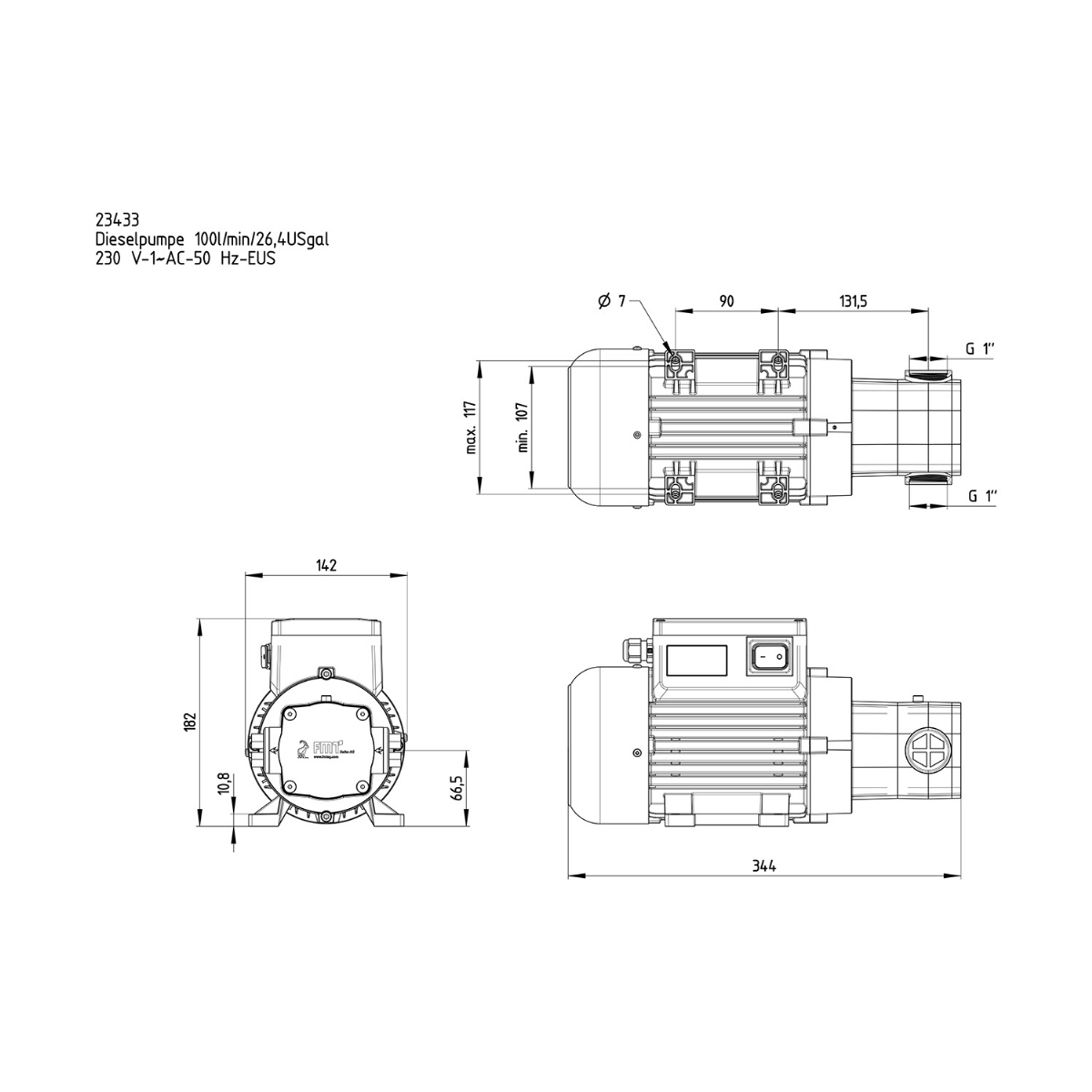

Dimensions LxWxH (mm): 320 x 135 x 190
Weight (kg): 10,08
Specification
● Vane pump, with integral bypass
● On/Off switch
● Siphon protection acc. to WHG (German government regulation for environmental care), continuously active
● Installation of flowmeter NUMERIxx³, three digits, is possible (23 192)
Special notes
● First class construction of electric machines and pumps
● Designed for a long service life
● Encapsulation of the electric motor, which, in case of extreme temperature
fluctuations, largely prevents the formation of condensed water and of short-circuits resulting thereof
● Motor and switch case made of shock resistant, die-cast aluminium
● Continuous operation – a real endurance runner
● Suction hight 5 m
● Small tolerances provide a high suction- and pressure performance
● Pump case freely positionable in all 90° positions
