FMT Electrical Diesel Transfer Pump 230 V 60 Lt/min

Item No: 23430

Diesel pump 60 l/min
230 V-1~AC-50 Hz-EUS
Connecting cable, length (m): 2
Connection suction side: G 1” female
Connection discharge side: G 1” female
Hydraulic data
Pump design: vane pump, selfpriming
Delivery rate under free discharge (l/min): 60
Discharge pressure up to (bar) / (psi): 1,8 / 26,1
Suction height (m): 5
Pumping media: fuel oil and diesel
Motor data
Insulation class: F
Highest permissible limit temperature (°C): 155
Voltage (V): 230
Frequency (Hz): 50
Power consumption (A): 3
Power (kW): 0,6
Thermal protection: self resetting
Duty cycle (min): Continuous operation
Torque (Nm): 1,27
Rotation speed (rpm): 2800
Type of construction: IMB 3
Protection class: IP 54
Materials of parts in contact with liquid
Seals: FKM (Viton®
Pump housing: AlSi 12 (sea water resistant)
Stator: 1.4301
Vane: POM

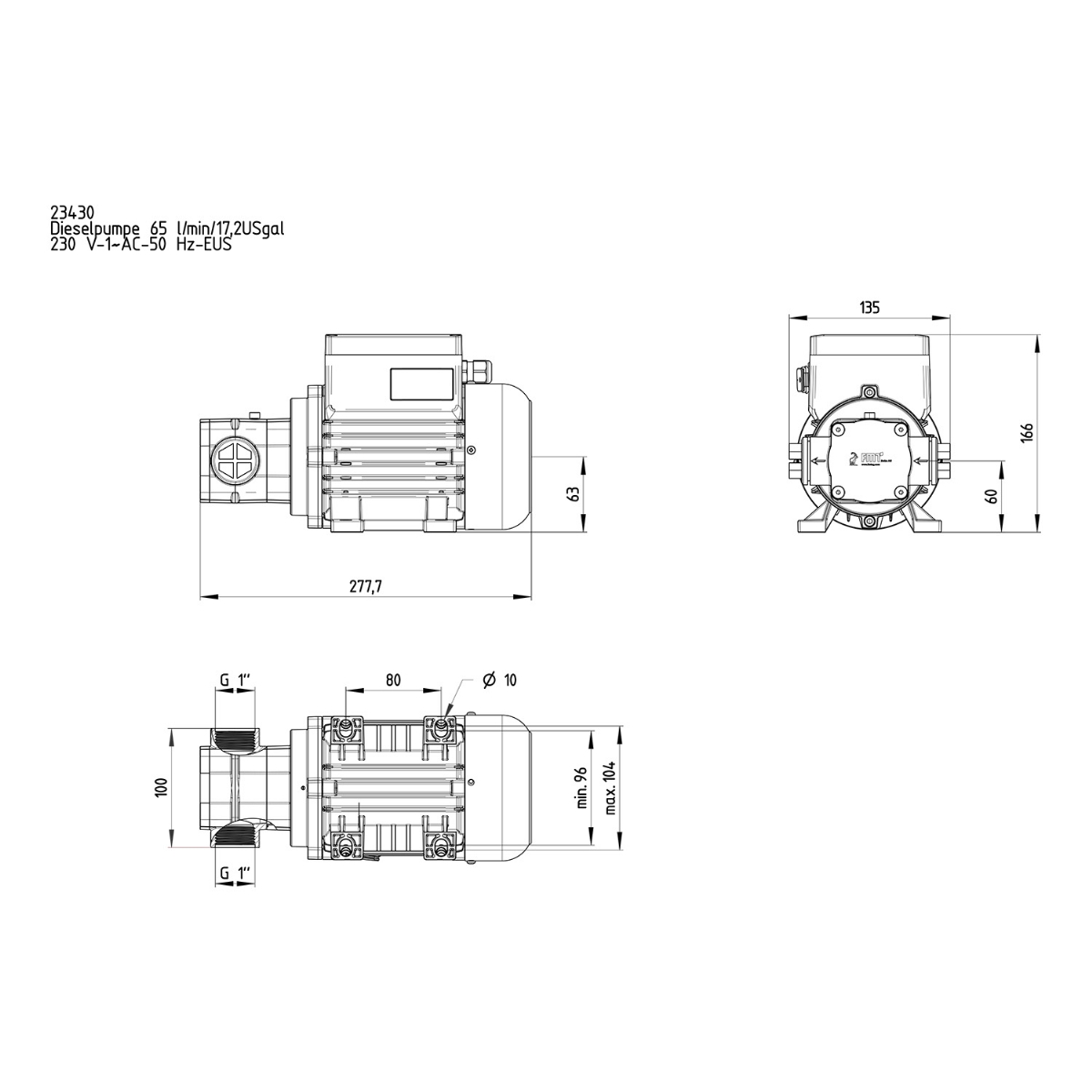

Dimensions LxWxH (mm): 280 x 115 x 170
Weight (kg): 6,4
Specification
Vane pump, with integral bypass , On/Off switch
Siphon protection acc. to WHG (German government regulation for environmental care), continuously active
Installation Flowmeter NUMERIxx³ three digit, possible (23 192)

First class construction of electric machines and pumps
Designed for a long service life
Encapsulation of the electric motor, which, in case of extreme temperature
fluctuations, largely prevents the formation of condensed water and of short-circuits resulting thereof
Motor and switch case made of shock resistant, die-cast aluminium
Continuous operation
High flow rate, 5 m / 16,4 ft
Small tolerances provide a high suction- and pressure performance
Materials guarantee a low weight and an exceptional lifetime with optimized efficiency
Packaging
Dimensions LxWxH (mm): 338 x 200 x 196
Weight including package (kg): 7
