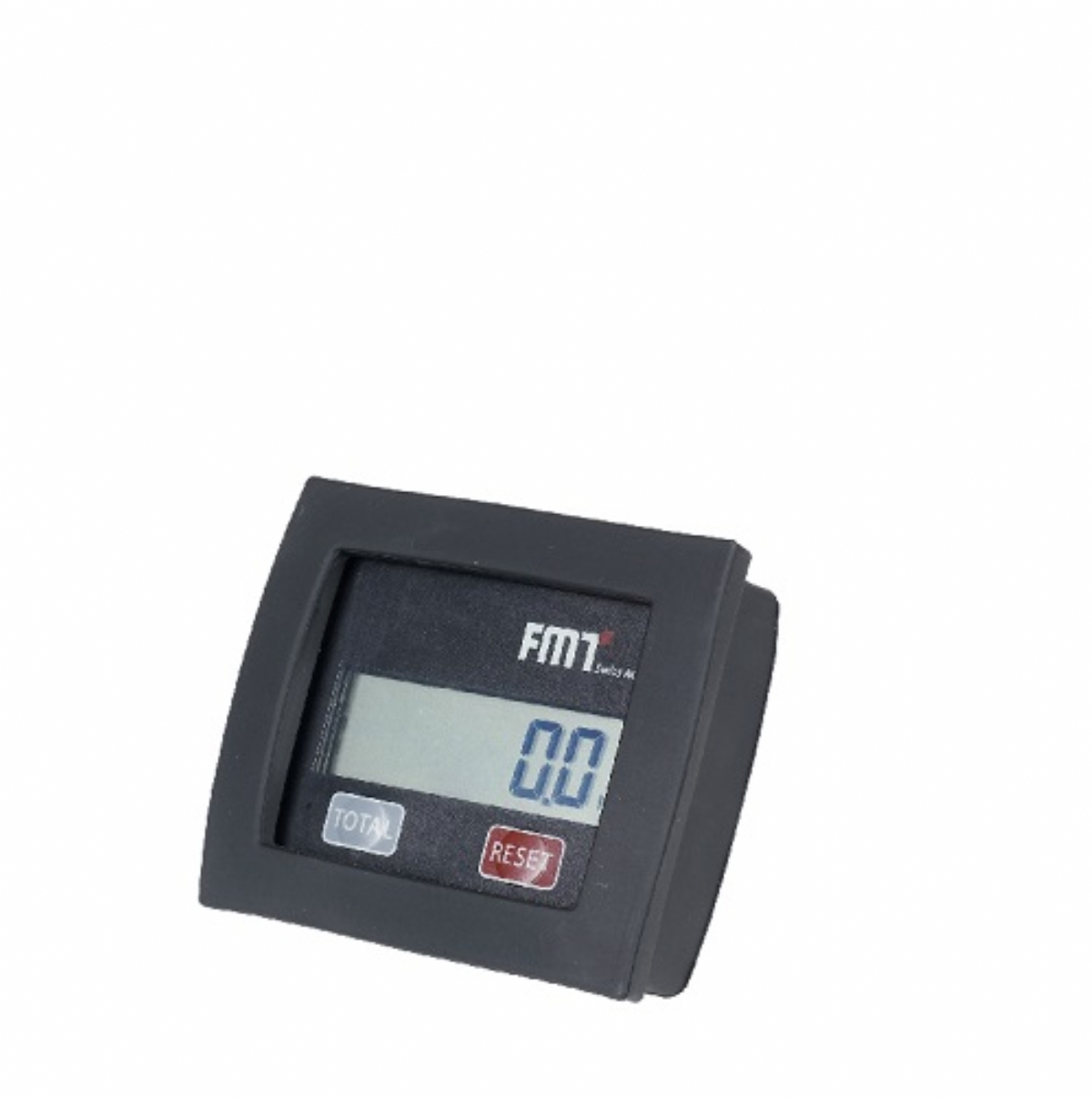

FMT in-line Grease Meter
FMT in-line Grease Meter
Item No: 18115
Grease meter -G 1/8“ F , Digital display for grease - 0-1000 cm³/min
Connection 1: G 1/8“ i, Connection 2: G 1/8“ i
Application range: Greases NLGI 000 – NLGI 2 (at room temperature)
Measurement unit: Volume in cm³
Flow rate (cm³/min): 0-1000
Operating pressure max. (bar/psi): 700
Burst pressure (bar/psi): 1000
Temperature range (°C): -20°C up to +60°C
Material of the casing: AlSi 12 (soft water resistant)
Surface treatment: Black electro-coating
Accuracy of repeated
processes 0-300 bar (%): 1
Display: Partial quantity + totalisator
Height of the digits (mm): 13
Voltage (V): 2,3 - 3,3
Power consumption (A): 800μA
Batteries: 2 x 1,5V
Battery type: 1,5V Lady LR1
Durability of batteries max. years:* 2
*depending on the number of uses and on the differences in the ambient temperature
Display: 5 digits, partial and total, quantity, resettable
