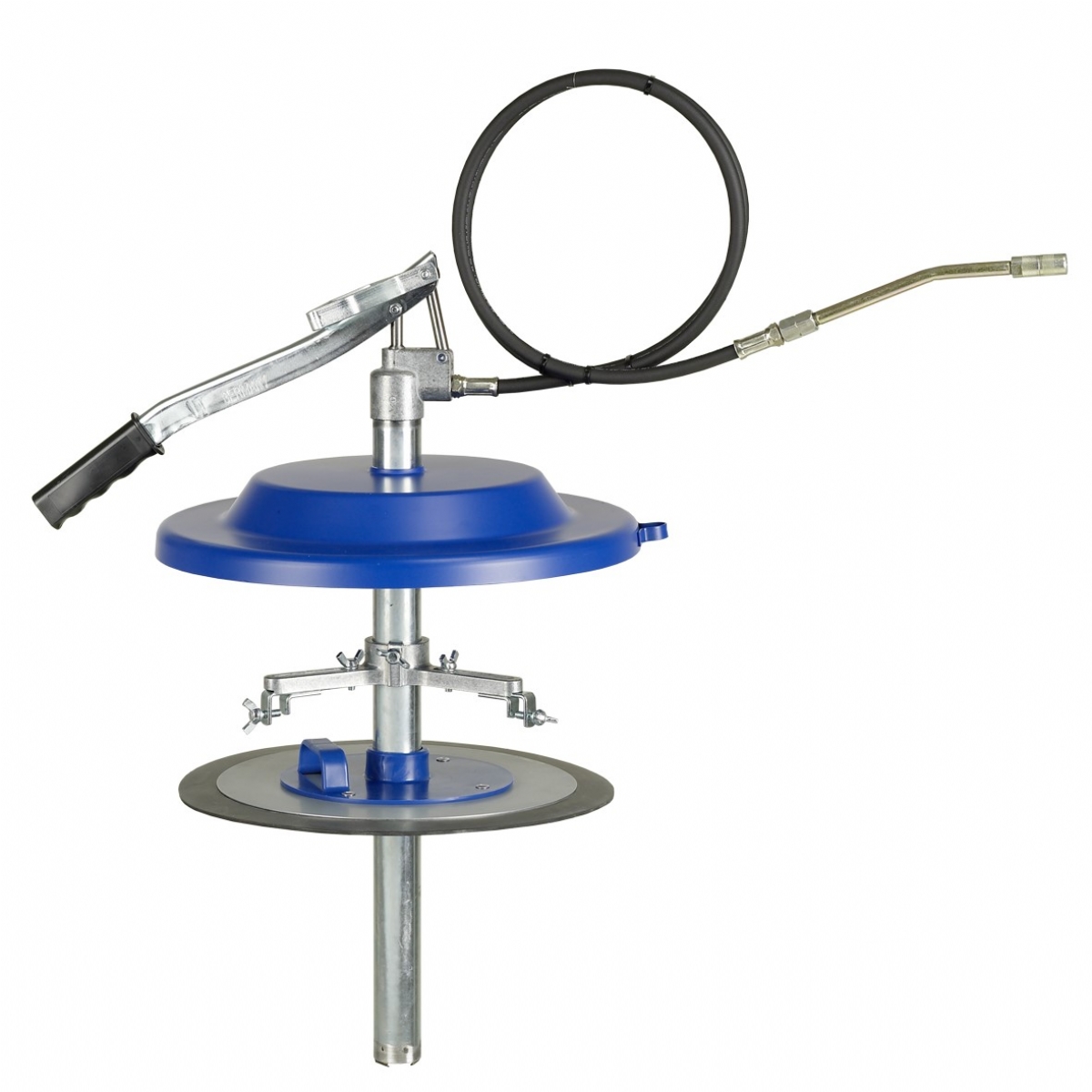

Manually Operated Grease Pump
Item No: 17694
This product is currently out of stock.
Technical data
Pumping media: lubricating greases, up to NLGI 2 Delivery rate/stroke (cm³): 3,8
Discharge hose: High pressure hose, 11 x 1500 mm (12 765 601)
Grease supply: manually lever operated
Follower plate: for 20 kg container
Follower plate (mm): 270 – 310
Length of suction tube (mm): 475
Discharge pressure up to (bar): 200
Material pump body: steel
Material pump head: impact-resistant zinc die casting
Surface treatment: all steel components are galvanized
Lacquering dust cover: blue, Pantone 294 C Specification
Manual pump for grease supply
Pump
Suction tube
Dust cover (17 176),
Stabilising-fixing bracket (17 197)
Follower plate (17 300)
High pressure grease hose, 11 x 1500 mm (12 765 601)
Spout, angled, G 1/8”, 150 mm (12 735)
Coupler, 4 jaws, G 1/8” (12 731)
Robust carrying handle
