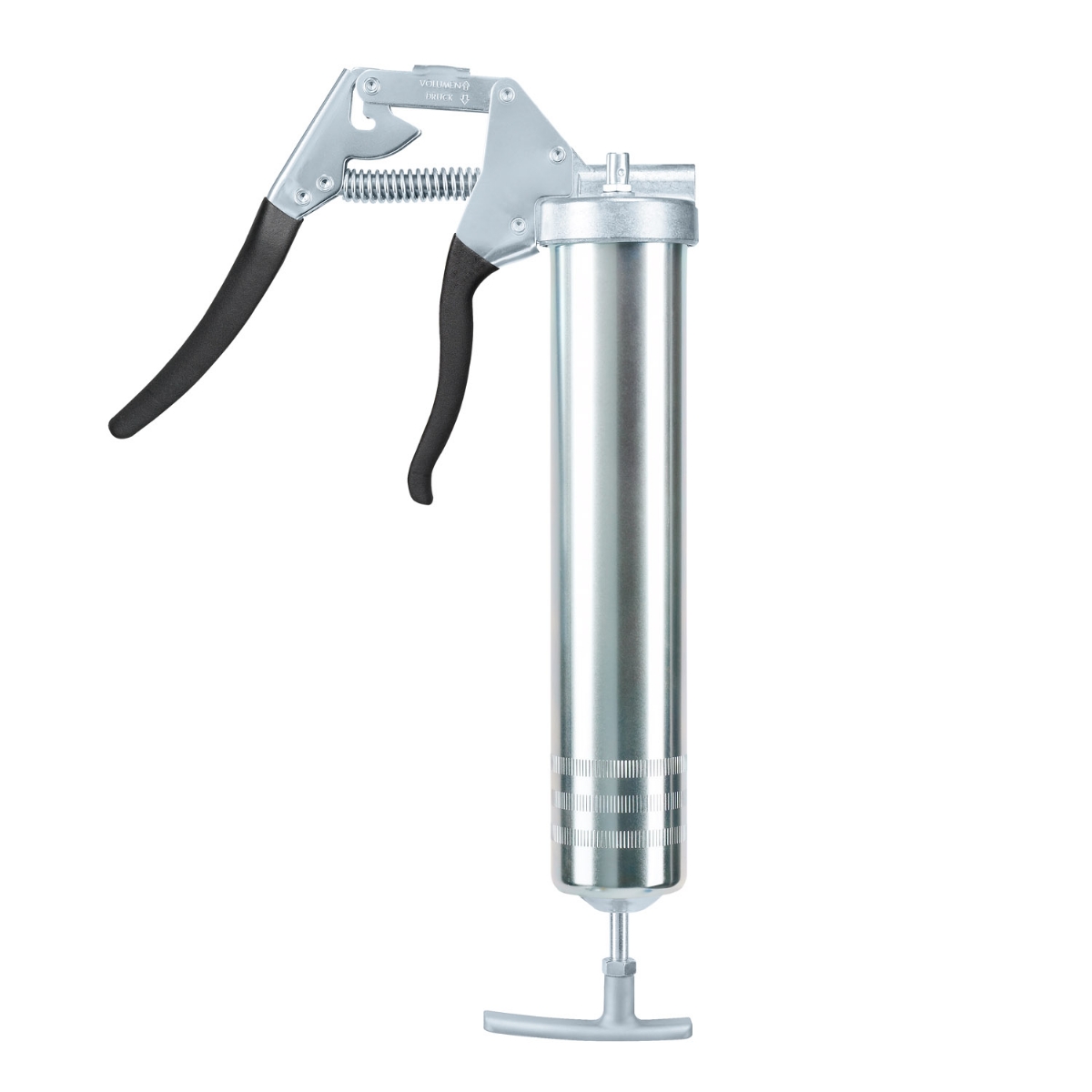

One Hand Grease Gun Galvanized
NEW
One Hand Grease Gun Galvanized
Item No: 14400 271
One hand grease gun 2014.1 M 10 x 1 Galvanized
Technical data
Grease gun connection, pressure-side: M 10 x 1
Filling nipple: M 10 x 1
Capacity (cm³): 500
Refilling options: 400 g grease cartridge, DIN 1284, grease gun
filling system or bulk grease
Grease pump piston actuation: manual, by means of pressure grip
Calibration Volume
Delivery rate/stroke (cm³): 1,1
Max. delivery pressure (bar): 200
Calibration Pressure
Delivery rate/stroke (cm³): 0,7
Max. delivery pressure (bar): 300
Dimensions LxWxH (mm): 400 x 165 x 66
Weight (kg): 1,3
Specification
● Filling nipple (FN), M 10 x 1 male (12 670)
● Grease gun head, zinc die casting Z 410
● Dismantleable and movable push rod system
● T-grip, optimized grip and pressure optimized
● Ergonomic handle, non-slip, excellent power transfer and handling
● Packed in single carton box
● Galvanized parts: grease gun tube, grip, lever, pulling strap, safety catch, cap, push rod
Special notes
● The construction allows a single hand operated lubrication for an easy work in restricted areas
● Can be switched with the hand grip from grease delivery with high volume to high pressure
● Due to the flexibility of the push rod, the plunger can be inserted into damaged
cartridges or cartridges not exactly matching the standard dimensions
● Damaged cartridges can easily be removed
● Push rod can be locked in any position - push rod does not have to be fully retracted
to release the spring pressure on the grease (grease does not saponify)
● The ease of dismantling permits simple cleaning
● Rolled thread on the grease gun tube resists damage from impact and allows quick
and easy screwing-in by 1,5 turns
● High-speed ventilation, by half a rotation of the grease gun tube
● Designed for use in rough conditions
● Similar to DIN 1283
Packaging
Dimensions LxWxH (mm): 400 x 165 x 75
Weight including package (kg): 1,45
Packing unit: 1,0
