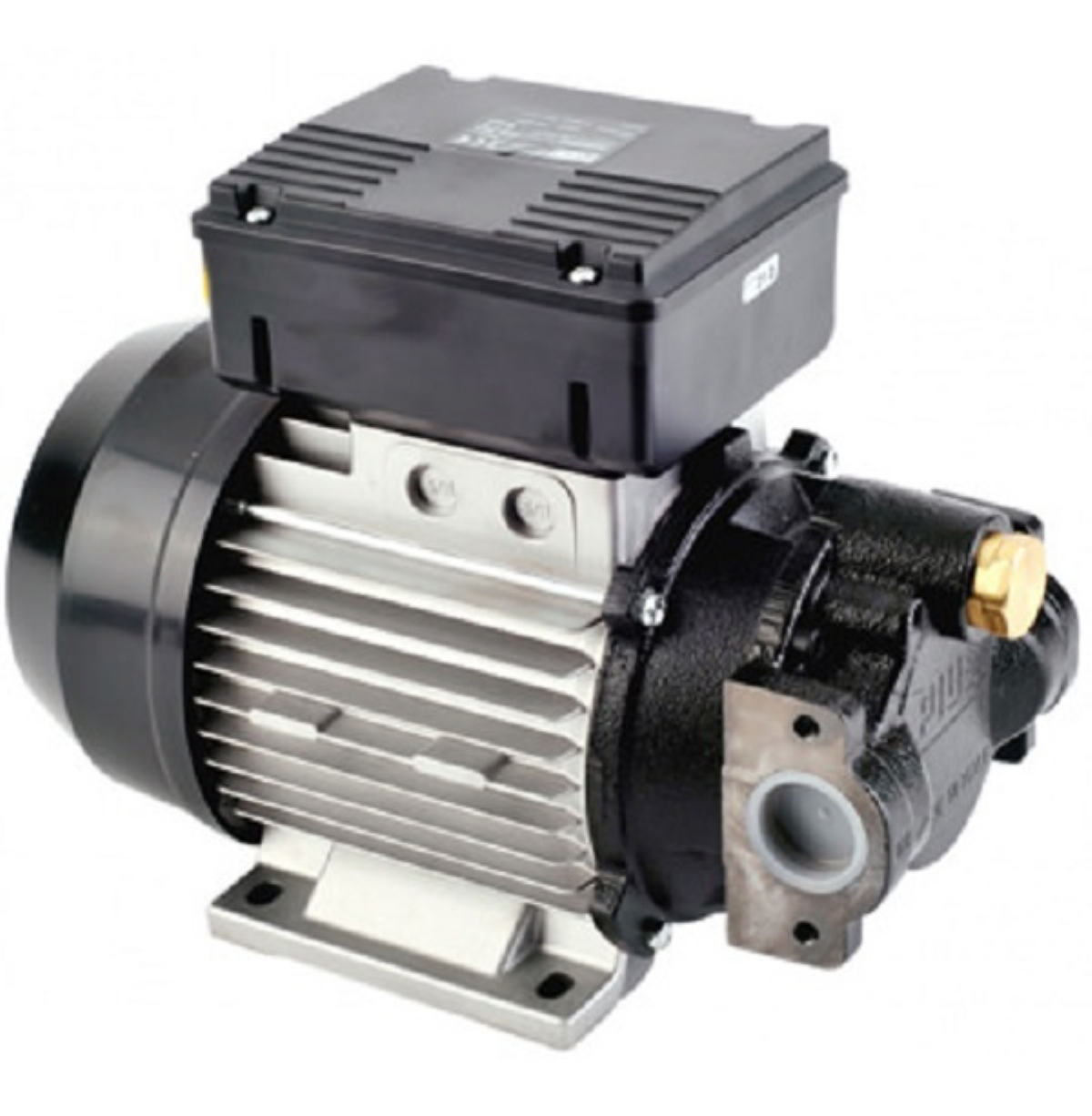

Piusi Viscomat 90 Vane Oil Pump 220 volts
Piusi Viscomat 90 Vane Oil Pump 220 volts
Item No: VISCOMAT 90 M
PIUSI 240V AC Viscomat 90M Pump -
50lpm PUMP 240V AC PIUSI 50lpm Viscomat Vane Pump F00303M00 DN25 Scr BSP Female Threads Electric vane pump for pumping fluids of a viscosity up to 500 cSt. Continuous operations, with elevated suction,...
PIUSI 240V AC Viscomat 90M Pump - 50lpm
- PUMP 240V AC PIUSI 50lpm Viscomat Vane Pump F00303M00 DN25 Scr BSP Female Threads
- Electric vane pump for pumping fluids of a viscosity up to 500 cSt.
- Continuous operations, with elevated suction, up to 6 bar pressures. Noise levels below 70 dB.
- Asynchronous, closed, selfventilating AC motor available in different voltages and frequencies.
- Optional closed-delivery operations thanks to inbuilt adjustable by-pass in pump body.
- Sintered steel rotors with resin vanes.
- Seal on motor shaft accessible from pump side.
- The Piusi Viscomat 90 Vane oil transfer pump is an ideal solution for the transfer of large amounts of oil at medium pressure from one tank to another.
- This Piusi pump also maintains good flow rates when used in high pressure systems, where the oil pump supplies hose reels for fixed oil dispensing.
- These oil transfer pumps are reliable and high quality pumps, which have a high suction, smooth flow and operate at less than 70dB.
- Self-Priming Viscomat Oil Transfer Pump
- Incorporated Bypass Valve
- Flow rate: 50ltr per min
- Viscosity up to 500 cSt
- Maximum fluid temperature of 70ºc
- Continuous Running|
- 1” threaded connections
- Viton lip seal
- Protection Grade: IP55
- Available in 230v/400v
