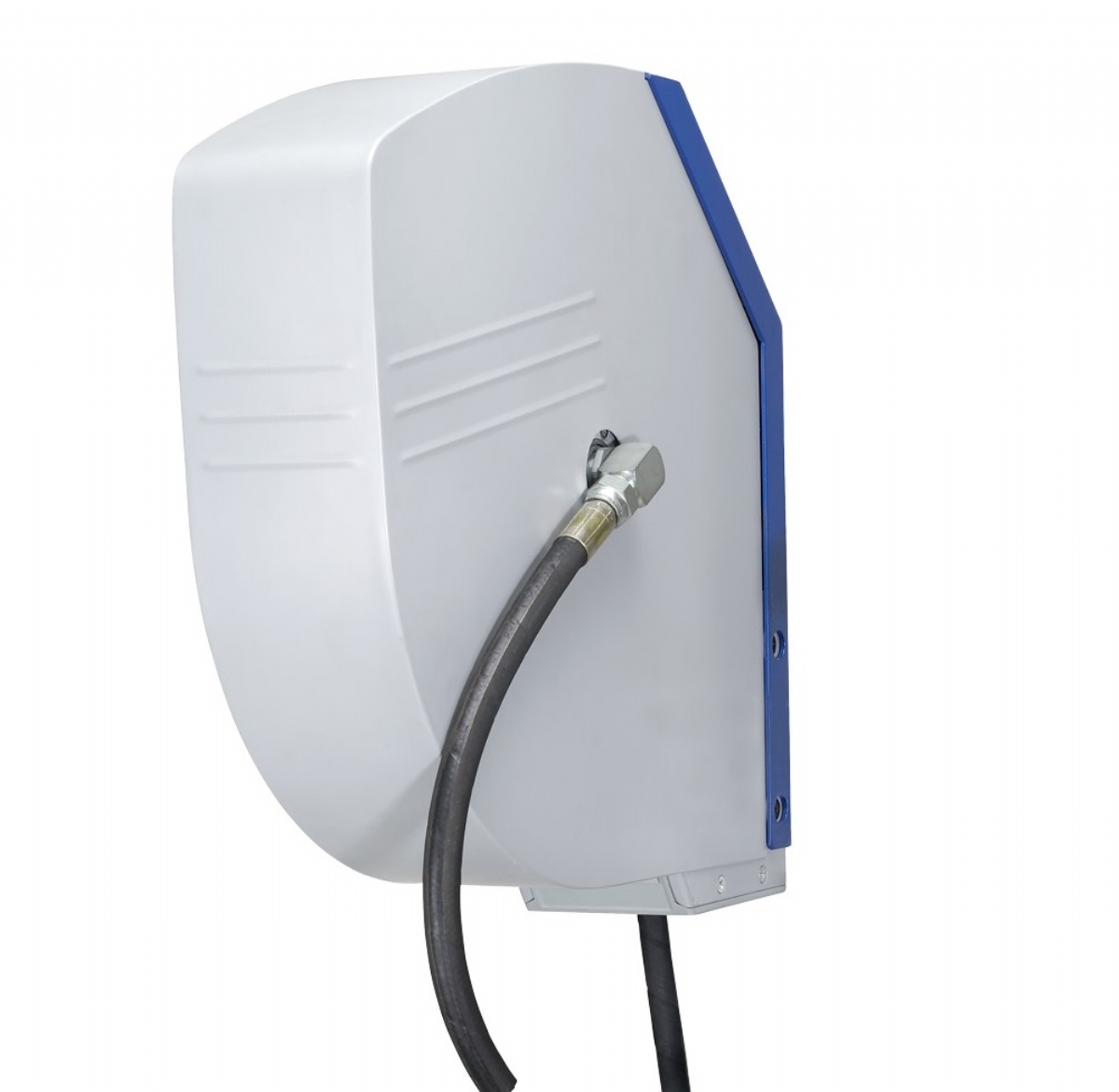

Pressol Hose Reel For Oil and Air 10 mt
Pressol Hose Reel For Oil and Air 10 mt
Item No: 29172
Pressol hose reels are exceedingly robust and are notable for their compact design.
All metal parts are phosphatized, undercoated and painted.
The high quality surface treatment of all steel parts ensures high corrosion resistance
Axis (Ø 40 mm) of die cast parts. Dimensions selected by our engineers ensure almost unlimited life range
The material combination axis / bearing and the spring unit are maintenance-free
Easy assembly because the weight of the hose reel does not need to be supported while mounting.
All swivel joints are ball bearing based
High pressure in the supply system does not influence the power needed to rotate the drum.
With hose stop
The hose can be engaged by rotating 1/4 turn.
Packaging
Dimensions LWH (mm): 540 x 580 x 160
Weight (kg): 25,100
Pressol Hose Reel For Oil and Air ( 29172 )
GDA, WB, 120 bar, DN 12, 10 m

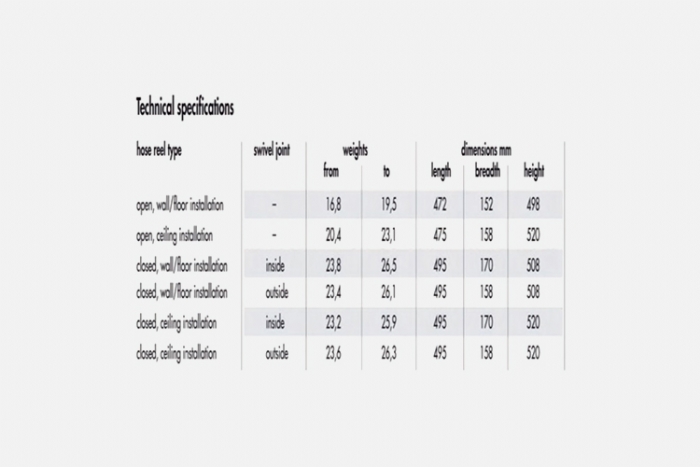

Technical Data
Length of discharge hose (m): 10
Connection discharge hose: G 1/2″ i, G 1/2″ a
Length of connecting hose (m): 1
Connection to connecting hose: G 1/2″ i, G 1/2″ a
Diamètre intérieur du flexible: DN 12
Operating pressure max. (bar): 120
Colour casing: window grey, satin, RAL 7040
Arm: window grey, satin, RAL 7040
Supporting plate: window grey, satin, RAL 7040
Encasing: Pantone 294c, blue satin
Mounting bracket: Pantone 294c, blue satin
Dimensions LWH (mm): 495 x 158 x 508
Weight (kg): 24,100
Specification
encased, for wall/floor mounting, outside swivel
All Products 2 years warranty.
