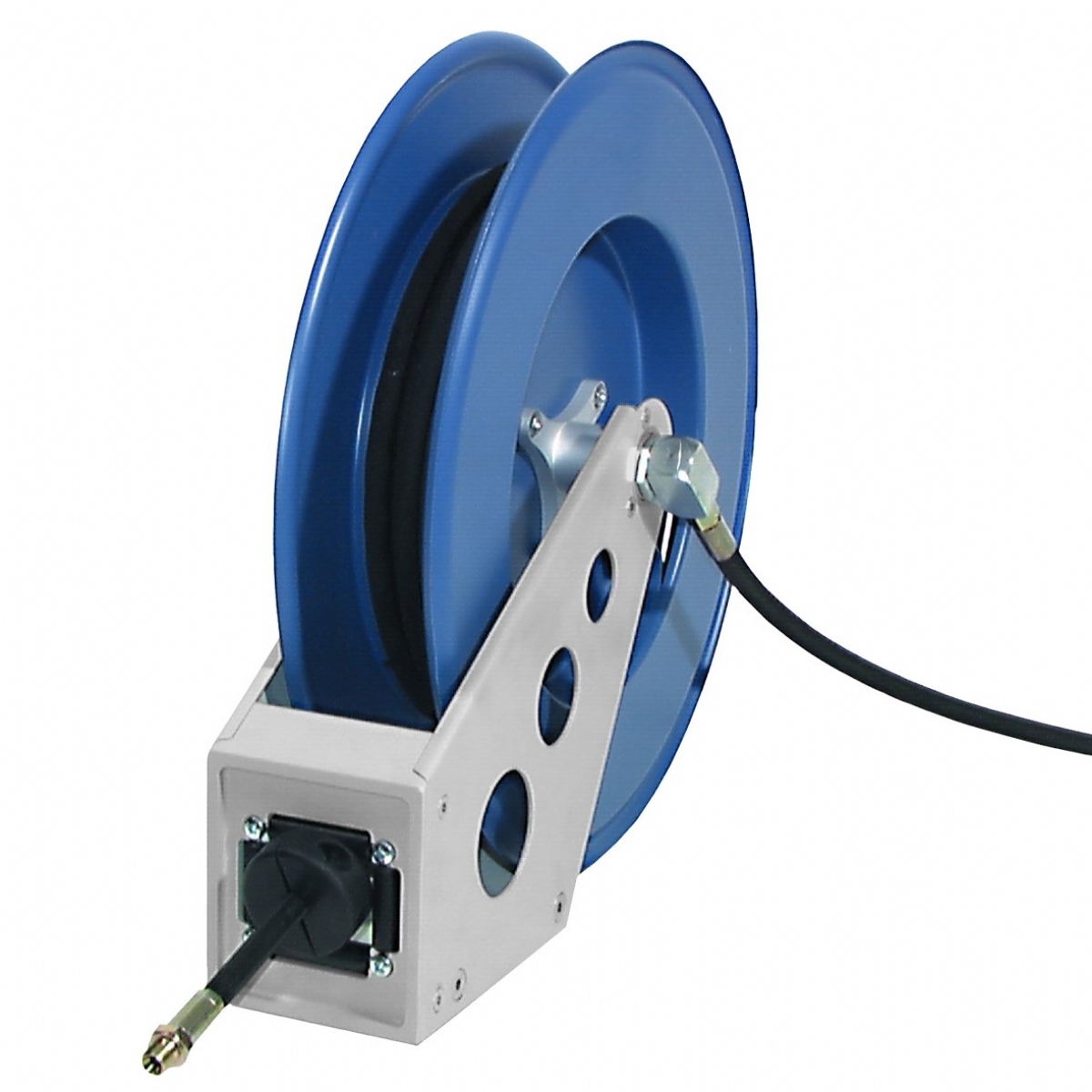

Pressol Open Hose Reel-For Grease 15 mt
Pressol Open Hose Reel-For Grease 15 mt
Item No: 29243
Pressol Open Hose reel-for grease (29243 )
O-WB-400 bar-DN 6-15 m
Technical data
Length of discharge hose (m): 10
Connection discharge hose: G 1/4″ male/female
Length of connecting hose (m): 1
Connection to connecting hose: G 1/4″ female/female
Inner diameter of hose (DN): 6
Operating pressure max. (bar): 400
Lacquering Arm: window grey, satin, RAL 7040
Supporting plate: window grey, satin, RAL 7040
Encasing: Pantone 294c, blue satin
Dimensions LxWxH (mm): 472 x 152 x 498
Weight (kg): 18,800
Specification
open, for wall/floor mounting
With hose stop
