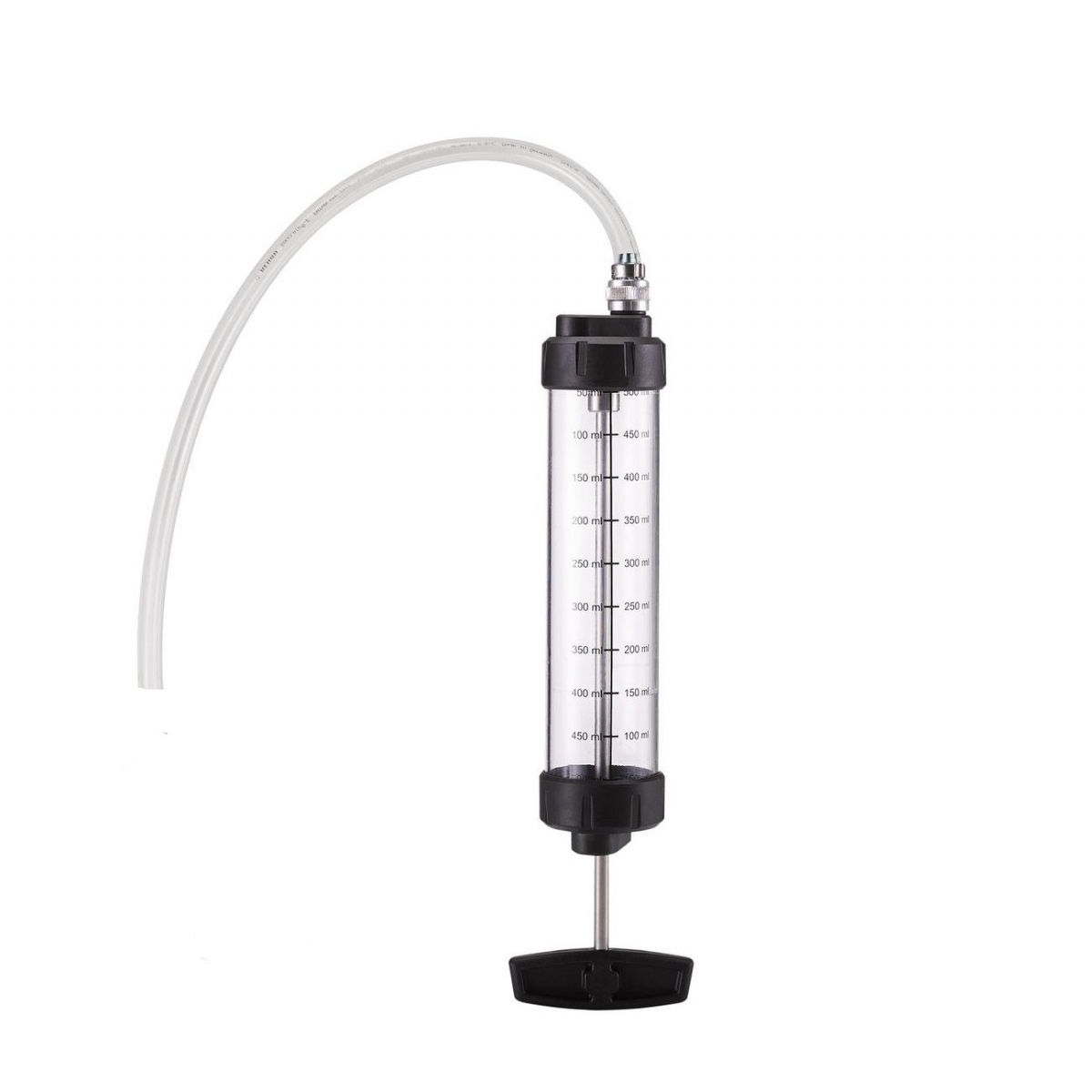

Pressol Push Type-And Suction Gun 500 ml PVC
Pressol Push Type-And Suction Gun 500 ml PVC
Item No: 12972
For mineral, synthetic and biological oils, diesel, heating oil, antifreeze (window and motor), glycerin, urea up to 10%, water and seawater
The plunger ensures reliable suction of the liquid
All materials that come into contact with the media are of high quality
Technical data
Capacity (ml): 500
Suction volume (%): 100
Diameter tubing outside (mm): 60
Tube thickness (mm): 3
Stroke length (mm): 300
Suction hose diameter (mm): 12
Suction hose length (mm): 600
Materials of parts in contact with liquid
Head and cover: PAGF 30 (PP glass-fibre reinforced)
Tube: Polycarbonat
Piston: FKM (Viton®)
Piston rod: stainless steel
Seal: FKM (Viton®)
Valves / connection: aluminium
Suction hose: PVC
Dimensions LxWxH (mm): 95 x 65 x 335
Weight (kg): 0,5
Specification
Ergonomic T-grip
Suction hose (12 996)
Pressol Push type- and suction gun 500 ml-PVC 12972
Technical data
Capacity (ml): 500
Suction volume (%): 100
Diameter tubing outside (mm): 60
Tube thickness (mm): 3
Stroke length (mm): 300
Suction hose diameter (mm): 12
Suction hose length (mm): 600
Materials of parts in contact with liquid
Head and cover: PAGF 30 (PP glass-fibre reinforced)
Tube: PVC
Piston: FKM (Viton®)
Piston rod: stainless steel
Seal: FKM (Viton®)
Valves / connection: aluminium
Suction hose: PVC
Dimensions LxWxH (mm): 95 x 65 x 335
Weight (kg): 0,5
Specification
Ergonomic T-grip
Suction hose (12 996)
